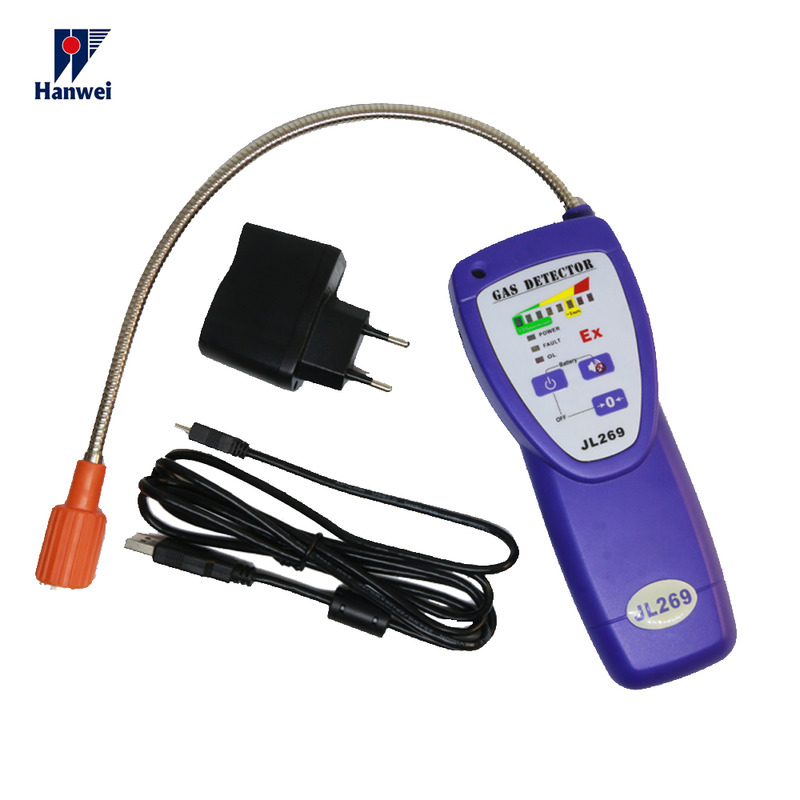

Hanwei JL269 LCD/LED CH4 Propane Detector JL269 LCD/LED

 Brief Introduction

JL269 portable gas leak detector is suitable for detecting gas leakage of combustible gases both in house environment and industrial environment,such as kitchen,gas station and other places where there may be gas leakage.

Features

• LED or LCD display optional
• Short warm-up time,fast response
• Flexible gooseneck and adjustable display unit
• Low battery alert

Calibration-free on gas sensor
Quick response to combustible gas leakage
Long and flexible gooseneck tube
Adjustable sensitivity
30-level LED / tricolor show
Battery low voltage alert
Sensor fault self test

Detecting Gas: Natural gas, LPG
Sensitivity: better than 50ppm
Detection range:
Green LED: 500ppm---10000ppm
Yellow LED: 1000ppm---100000ppm
Red LED: 2000ppm----200000ppm
Working condition: Temperature. -40-70C Humidity: ≤95% RH
Warm-up time: <20S
Response time: <10S
Indication: 30 levels of LED indication
Green: low concentration
Yellow: middle concentration
Red: high concentration
Alarming levels: The shorter the frequent buzzer sound, the higher the concentration reach
Power supply: Ni-H chargeable battery DC3.6V 1600mAh
Charge time: 46 hours
Using time of the battery: >8h(Normal working status)

Weight: About 300g
Dimensions: L*W*H 180mm×72mm×35.5mm

Package Includes

1 x Carrying case

1 x Portable gas detector

1 x Adaptor
